19 pin HDMI type A plug connector layout
19 pin HDMI type A plug connector
Device 1
Pin Number
Device 1
Pin Name
Direction Device 2
Pin Number
Device 2
Pin Name
Description
1 IR2   1 Left Jack 2.5 Female
2 IR1   2 Right Jack 2.5 Female
4 Pr   SIGNAL Pr First RCA Component
6 Y   SIGNAL Y Second RCA Component
8 Pb   SIGNAL Pb Third RCA Component
10 Audio Left (YPbPr)   SIGNAL AUD_L RCA  Audio Left Component
11 Audio Right (YPbPr)   SIGNAL AUD_R RCA Audio Right Component
12 Audio Left (Composite)   SIGNAL AUD_L RCA Audio Left Composite
13 Audio Right (Composite)   SIGNAL AUD_R RCA Audio Right Composite
15 Luminance   3 Luminance 4 pin Mini-DIN Female
16 Chroma   4 Color 4 pin Mini-DIN Female
17 Composite   SIGNAL COMP RCA Composite
Shield Ground   3
GROUND
1
2
GROUND
GROUND
GROUND (Y)
CROUND (C)
1)Jack 2.5 Female
2)All RCA
3)4 pin Mini-DIN Female
4)4 pin Mini-DIN Female

All ground pins connected to HDMI Shield. This device is identified as two separate capture card in OS: first for TV, composite/S-Video signals and IR, second for component/HDMI signals. That's why there two pairs of RCA Audio.

There are no any reports for this pinout! You may rate this document by clicking the button below.

Is this pinout

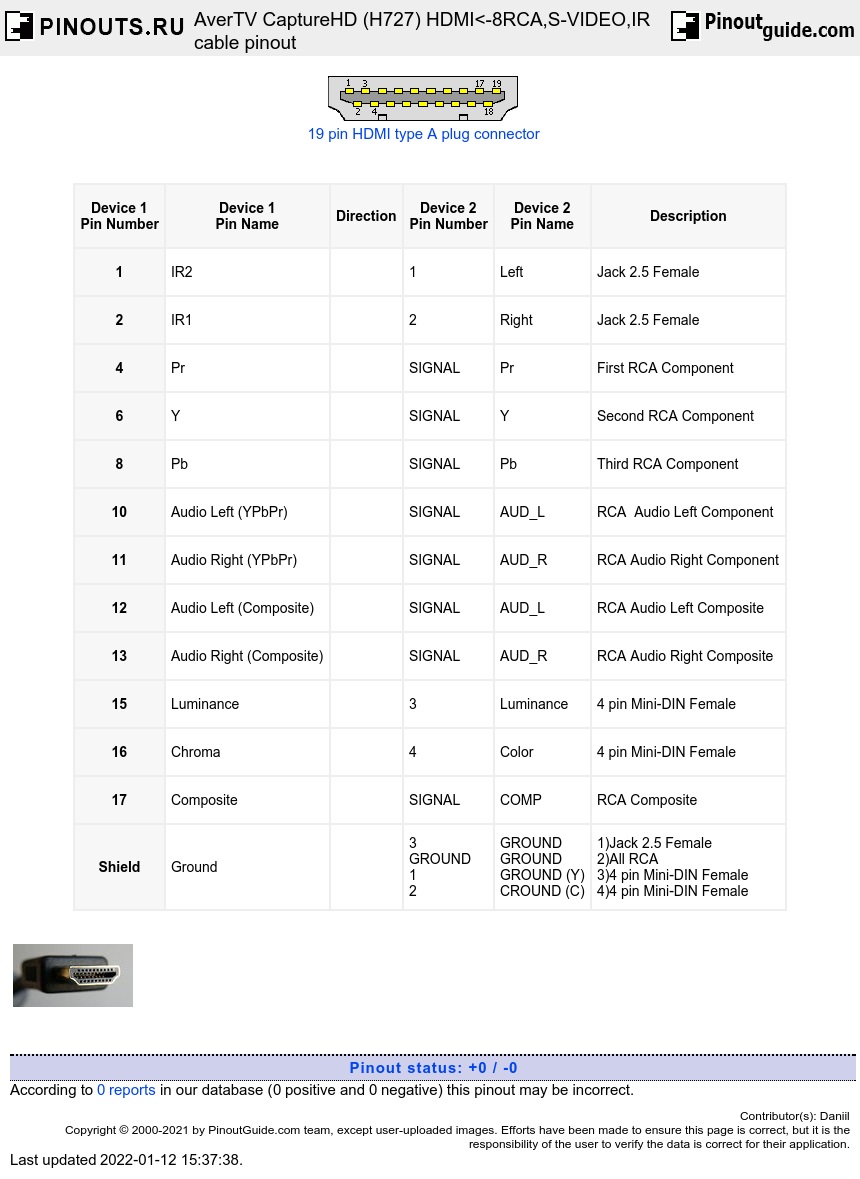

AverTV CaptureHD (H727) HDMI<-8RCA,S-VIDEO,IR cable visual pinout:click to enlarge
