24 pin USB-C connector layout
24 pin USB-C connector

USB type-c details

Developed at roughly the same time as the USB 3.1 specification, but distinct from it, the USB Type-C Specification 1.0 defines a new small reversible-plug connector for USB devices. The Type-C plug connects to both hosts and devices, replacing various Type-B and Type-A connectors and cables with a standard meant to be future-proof, similar to Apple Lightning and Thunderbolt. The 24-pin double-sided connector provides four power/ground pairs, two differential pairs for USB 2.0 data bus (though only one pair is implemented in a Type-C cable), four pairs for high-speed data bus, two sideband use pins, and two configuration pins for cable orientation detection, dedicated biphase mark code (BMC) configuration data channel, and VCONN +5 V power for active cables. Type-A and Type-B adaptors and cables will be required for older devices in order to plug into Type-C hosts; adaptors and cables with a Type-C receptacle are not allowed.

USB type-C pinout

1  A1 GND
2  A2   TX1+
3 A3 TX1-
4 A4   VBUS
5  A5   CC1
6   A6   D+
7   A7   D-
8   A8   SBU1
9   A9   VBUS
10   A10   RX2-
11   A11   RX2+
12   A12   GND
13   B1   GND
14   B2   TX2+
15   B3   TX2-
16   B4   VBUS
17   B5 CC2
18   B6   D+
19   B7   D-
20   B8   SBU2
21   B9   VBUS
22   B10   RX1-
23   B11 RX1+
24   B12   GND

USB type-C cable

Full-featured USB Type-C cables are active, electronically marked cables that contain a chip with an ID function based on the configuration data channel and vendor-defined messages (VDMs) from the USB Power Delivery 2.0 specification. USB Type-C devices also support power currents of 1.5 A and 3.0 A over the 5 V power bus in addition to baseline 900 mA; devices can either negotiate increased USB current through the configuration line, or they can support the full Power Delivery specification using both BMC-coded configuration line and legacy BFSK-coded VBUS line.

Alternate Mode dedicates some of the physical wires in the Type-C cable for direct device-to-host transmission of alternate data protocols. The four high-speed lanes, two sideband pins, two USB 2.0 pins and one configuration pin can be used for Alternate Mode transmission. The modes are configured using vendor-defined messages through the configuration channel.

USB type C cable is also known as some Genuine USB cables: Huawei HL1289, LG DC12WB-G, Sony UCB20 cable and some others.

Should be compatible with :

  • Samsung Galaxy A5 (2017), Galaxy A3 (2017), Galaxy A7 (2017), Galaxy S8 (2017), Galaxy S8+, Galaxy Note 7, Galaxy Note 8, Galaxy S8 Active, Galaxy Note FE, Galaxy C5 Pro, Galaxy C7 Pro, Galaxy C9 Pro, Galaxy Tab S3 9.7
  • Leeco Letv Le Superphone, Letv Le 1, Letv Le 1 Pro, Letv Le Max,  Le Max 2, Le 2 Pro, Letv Le 2 X527, Le Pro 3 AI Edition, Le Pro3 Elite,  Le S3, Le Pro3
  • Huawei P9 (2A),  P9 plus (2A)
  • Huawei Mate 9 (5A), Mate 9 Pro (5A)
  • Huawei P10, P10 Plus, G9 Plus
  • Huawei Nova, Nova 2, Nova 2 plus
  • Huawei Honor 9, Honor V8, Honor 8 Pro, Honor Magic
  • Huawei Maimang 5 MLA-AL10, Mate 9, Nexus 6P
  • LG V20, G5, G6, X CAM, X SCREEN, Nexus 5X,  G Pad III 10.1, Q8
  • HTC M10, Bole,  U11,  U Ultra,  U Play,  10 evo,  10
  • OnePlus 3 A3000, 3T,  2 Two, 5
  • Nokia Lumia 950 XL, Lumia 950, N1, Nokia 8
  • Xiaomi 5s, 5S plus, 4C, 4S
  • Xiaomi Mi 5, Mi 5X, Mi 5S, Mi 5S Plus, Mi 5c, Mi 6, Mi Note 2, Mi Max 2, Mi Pad 3,  Mi Mix
  • Meizu Pro 5, Pro 6,  Pro 6s,  Pro 6 Plus,  M3x,  M6 Note,  Pro 7, Pro 7 Plus, MX6
  • Microsoft Lumia 950, Lumia 950 XL
  • Lenovo Zuk Z1, Zuk Z2,  ZUK Edge, Z2 Plus, ZUK Z2 Pro
  • Lenovo Tab 4 10 Plus, Tab 4 8 Plus, Yoga Tab 3 Plus
  • ZTE Nubia Z9 Max, Nubia N2, Nubia M2, Nubia Z11 mini S, nubia Z11 mini, Nubia M2 lite, Nubia Z17,  Z17 mini,  nubia N1, nubia Z11,  nubia Z11 Max
  • ZTE Blade V8 Pro, Blade Z Max Blade V7 Max, ZTE Axon 7s, Axon 7,  Axon 2,  Axon Max,  Axon 7 Max,  Axon 7 mini
  • ZTE Zmax Pro, Max XL, Project CSX, Hawkeye, Grand X4, Grand X Max 2
  • Sony Xperia L1,  Xperia XZs,  Xperia XZ Premium,  Xperia XA1 Ultra,  Xperia XA1,  Xperia XZ,  Xperia X Compact, Xperia Z5
  • Google ChromeBook Pixel, Pixel XL, Pixel C, Nexus 6P, Nexus 5X
  • Motorola Moto M, Moto Z Play (XT1635-03), Moto Z2 Play, Moto Z , Moto Z2 Force
  • Asus Zenfone 3,  Zenfone 4, Zenpad Z8s, Zenpad 3S, Zenfone AR, Zenpad 3, Zenpad Z10, Zen AiO
  • Vivo Xplay5 Elite, X5 pro
  • BlackBerry DTEK60, Keyone DTEC 70
  • Alcatel Pulsemix, Idol 5s, Flash (2017)
  • BQ Aquaris X Pro, BQ Aquaris X
  • Coolpad Cool M7, Cool1 dual, Cool S1, Cool Play 6
  • Micromax Dual 5
  • Yota YotaPhone 3
  • ZOPO Speed 8
  • Nextbit Robin
  • Smartron
  • Gionee S6, S Plus
  • Intex Aqua Secure
  • OnePlus Two
  • Nintendo Switch
  • HP Pavilion x2
  • Apple New MacBook 12 inch

Please note that not all phones support QC2 or 3 (Quick charge 2 or 3).

According to 1 reports in our database (1 positive and 0 negative) the USB Type C pinout should be correct.

Is this pinout

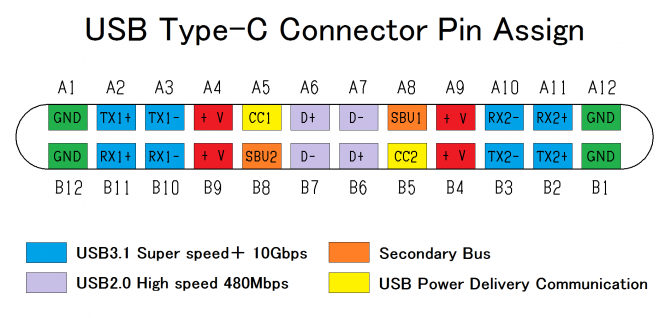

USB Type C visual pinout:click to enlarge
